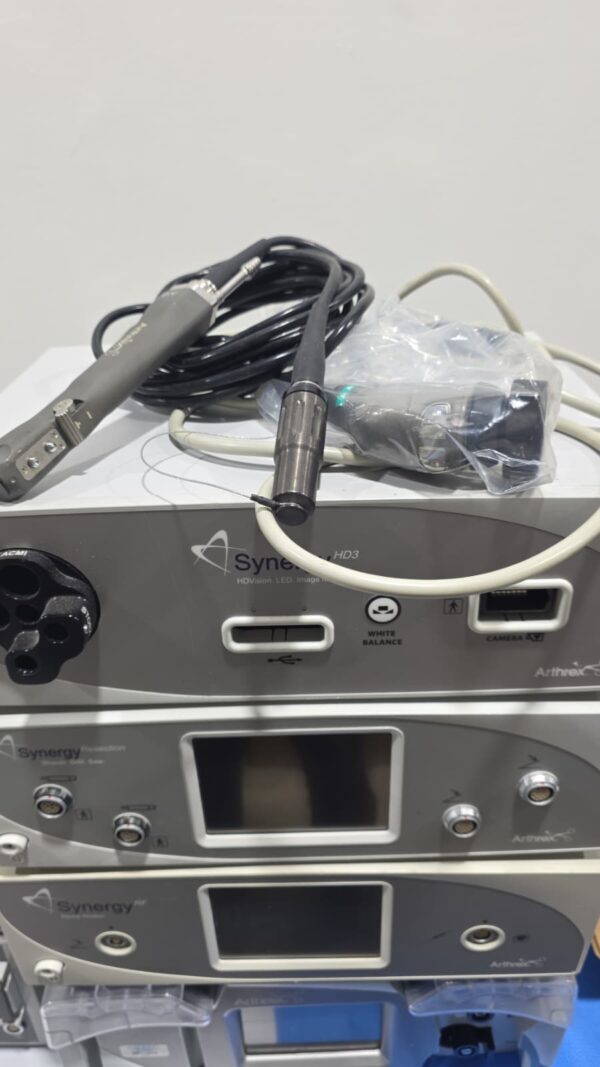

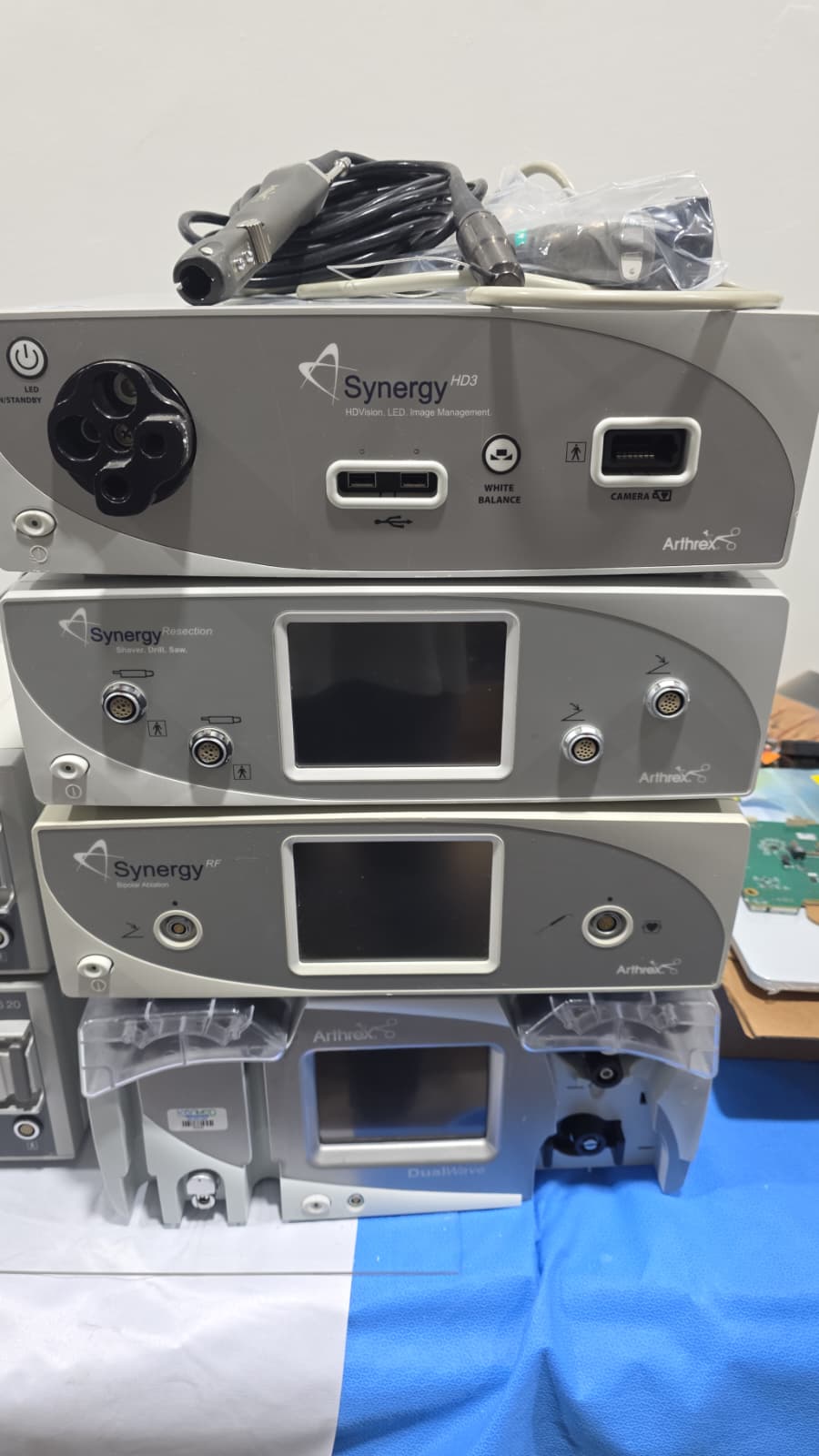

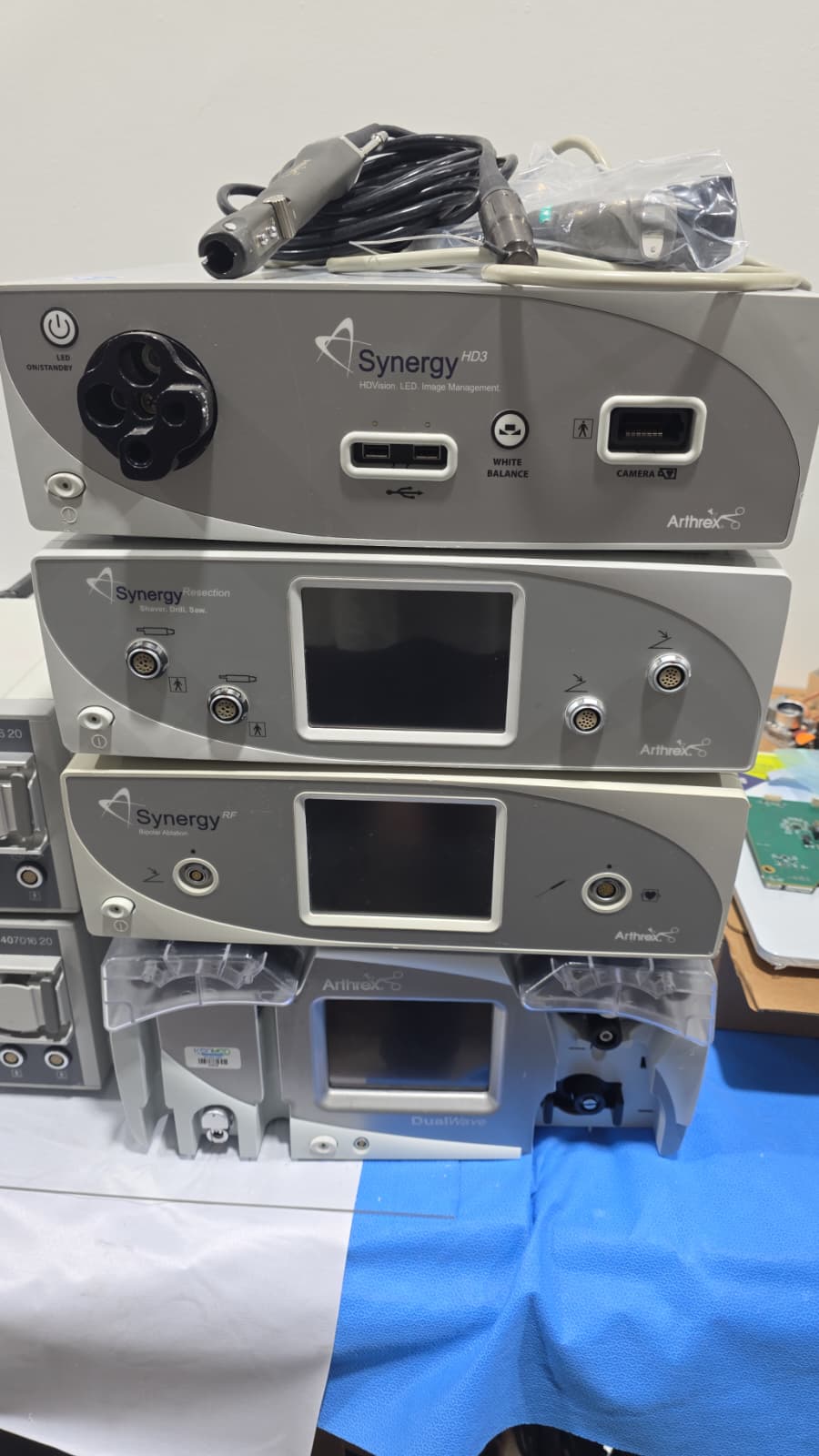

Arthrex Synergy HD3 Arthro Tower
Description
The Arthrex SynergyHD3 Tower is an integrated endoscopic visualization system combining a camera controller, LED light source, and image management into one, often managed via a tablet interface. It provides 1080p resolution and utilizes a 3-chip autoclavable camera head for arthroscopic procedures.
Key System Specifications
-
- Camera System: 3-Chip High Definition (1080p)
- Resolution: 1920 x 1080 pixels (1080p progressive)
- Light Source: Solid State “Xenon Bright” LED
- LED Lifetime: $\sim$30,000 hours
- Camera Head Type: Autoclavable (titanium construction)
- Image Management: Integrated, with HD still capture and video recording
- Input Power: 100-240 V~, 50-60 Hz, 140 VA
Components & Features
-
- Camera Head (AR-3210-0001): 1080p, 3-chip, autoclavable and STERRAD compatible.
- Console (AR-3200-0001T): Synergy HD3 Camera Controller with integrated light source and image management.
- Tablet Integration: Allows for touch-screen control of patient data, user presets, and image management.
- Network Capabilities: Allows for live streaming, and auto-routing of images to network storage (PACS).
- Light Cable: Compatible with 5 mm or 3.5 mm fused light guides.
- Output: 3-pin mini stereo accessory port and Ethernet.
Common Tower Configurations
- AR-3200-Kit: Synergy HD3 Camera System (console, head, cable).
- AR-3250-2606-Kit: System with Tablet and 26-inch monitor.
- AR-3250-3201: 32-inch High Definition LED Monitor
